• Rating：12VDC 50mA
• Contact Resistance：100mΩ Max
• Insulation Resistance：100MΩ min(250VDC)
• Dielectric Strength：250VAC 50/60Hz FOR 1 min
• Operating Force：160±50g
• Electric Life：50,000 cycles
• Operating Temperature Rang：-20℃ ~ + 70℃
|
 |
   |
| Part Number | Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operating Force | Electric Life | Operating Temperature | PDF下載 |
|---|---|---|---|---|---|---|---|---|

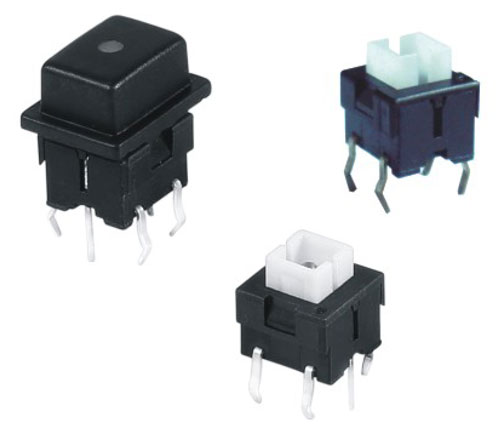

| R593-1L(With LED) | 12VDC 50mA | 100mΩ Max | 100MΩ min(250VDC) | 250VAC 50/60Hz FOR 1 min | 160±50g | 50,000 cycles | -20℃ ~ + 70℃ | 暫無 |
| R593-1 | 12VDC 50mA | 100mΩ Max | 100MΩ min(250VDC) | 250VAC 50/60Hz FOR 1 min | 160±50g | 50,000 cycles | -20℃ ~ + 70℃ | 暫無 |
