Home ? Product Center ? Other ? Switch ? Illuminated Switch ? R0193 ?

The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.

Illuminated Push Button Switches R0193

• Rating：0.1A 30VDC

• Contact Resistance：100mΩ Max

• Insulation Resistance：DC 500V 100MΩ Min

• Dielectric Strength：AC 250V for 1 minute

• Operation Force：200±50gf

• Operation Temperation：10℃ ~60℃

• Total Travel：2.5±0.4mm

• Operation Life：50,000 cycles

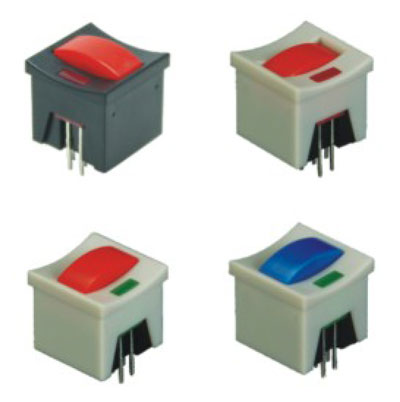

Illuminated Push Button Switches R0193 Figure

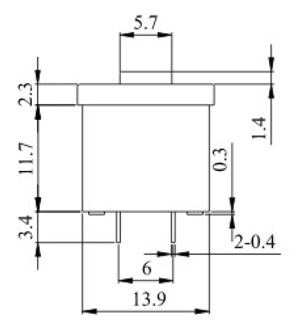

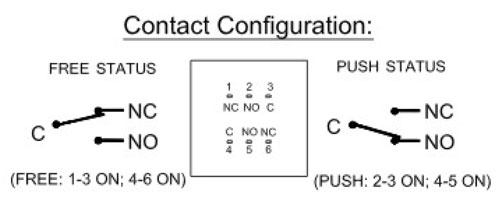

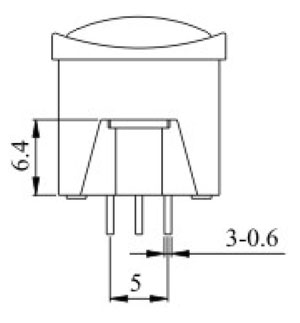

Illuminated Push Button Switches R0193 Structure Diagram

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operation Force	Operation Temperation	Total Travel	Operation Life	Download
R0193-UA-LN2	0.1A 30VDC	100mΩ Max	DC 500V 100MΩ Min	AC 250V for 1 minute	200±50gf	10℃ ~60℃	2.5±0.4mm	50,000 cycles	NULL
R0193-RB-NR	0.1A 30VDC	100mΩ Max	DC 500V 100MΩ Min	AC 250V for 1 minute	200±50gf	10℃ ~60℃	2.5±0.4mm	50,000 cycles	NULL
R0193-RA-LN1	0.1A 30VDC	100mΩ Max	DC 500V 100MΩ Min	AC 250V for 1 minute	200±50gf	10℃ ~60℃	2.5±0.4mm	50,000 cycles	NULL
